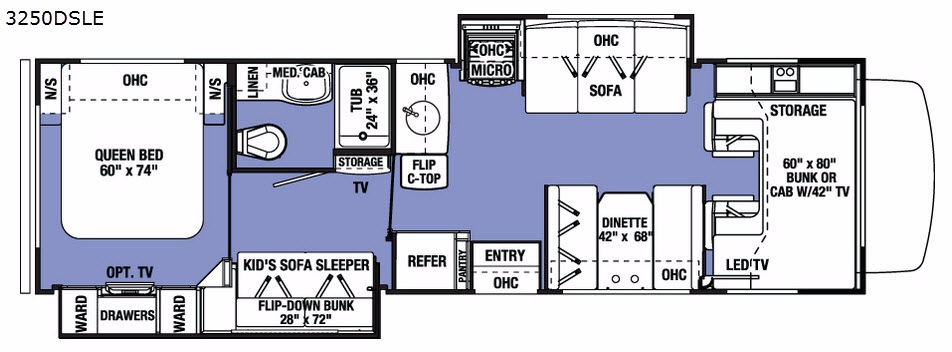

3250DSLE Ford Floorplan
Specifications
Sleeps | 9 | Slides | 2 |
Length | 32 ft 3 in | Ext Width | 8 ft 5 in |
Ext Height | 11 ft 3 in | Int Height | 7 ft |
Interior Color | Carmel, Pewter, Truffle | Exterior Color | Standard, Amber, Sterling |
Hitch Weight | 7500 lbs | GVWR | 14500 lbs |
Dry Weight | 12500 lbs | Cargo Capacity | 2000 lbs |
Fresh Water Capacity | 44 gals | Grey Water Capacity | 39 gals |
Black Water Capacity | 39 gals | Fuel Type | Gas |
Miles | 21213 | Chassis | Ford |
Shower Type | Standard |
Description
For the adventurous family, who loves to just get up and travel, choose the 3250DSLE Sunseeker LE travel trailer. This model features double slide outs, plus an area for your kids with a sleeper sofa and a fold down bunk!
As you enter this motor home, you will find yourself in the front combined kitchen/living area. To the left there is a refrigerator and pantry. Straight in from the door, along the road side you will find a slide out which features a sofa with an overhead cabinet plus a few seat belts so your passengers can be safe while traveling.
Along the door side you will find a dinette where you can enjoy your meals, and at night convert the dinette into a bed. Above the cab there is a 60"x80" bunk or you can choose to have a cab with a 42" TV. Along the interior wall there is a sink, extra counter space, a flip-up counter top, plus an overhead cabinet.
Moving toward the rear, the side aisle bathroom is on the right. Here you will find a toilet, linen cabinet, sink, medicine cabinet, and a tub.
The slide out along the road side features a kid's sofa sleeper with a flip-down bunk above. Across from the sofa there is a TV where your kids can watch their favorite shows or movies.
The slide out continues into the rear bedroom. Located on the slide out there are two wardrobes, a set of drawers, plus an optional TV. Across from the slide out you will find a queen bed with an overhead cabinet, and two nightstands, plus so much more!
Features
- 12 Months/12,000 mile basic limited warranty
- Chassis warranty (see owners manual)
Systems
- Battery disconnect
- Water heater bypass
- (2) Deep cycle coach batteries (1 battery in LE and TS)
- "Easy Access" battery in step-well
- 30 Amp service with detachable cord
- 60 Amp Progressive Dynamics converter
- 6 gallon DSI gas/electric water heater (N/A TS)
- 30,000 BTU furnace (N/A TS)
- Truma Combi water heater/furnace (TS only)
- Emergency start switch (N/A MBS)
- Satellite/cable connection
- 13,500 BTU ceiling ducted roof air
- 4.0 KW Onan Microquiet generator (N/A MBS, TS)
- 3.6 KW Onan LP generator (MBS only)
- 2.5 KW Onan LP generator (TS only)
- Automatic generator transfer switch
- Firestone Ride-Rite air helper springs (N/A MBS, LE, TS)
- Hellwig sway bar (MBS only)
- Water filtration system (N/A LE Series)
- Heated, enclosed holding tanks and valves (N/A MBS, LE, TS)
- Arctic Package (12V tank heaters) (Opt SS, GTS, LE, TS; Std MBS)
- 15K BTU A/C with heat pump (Option)
- CO2, LP and smoke detector
- Jack digital antenna
Exterior
- 2" aluminum framed laminated sidewalls (N/A MBS, TS)
- Azdel Superlight composite substrate (N/A TS)
- Gel Coat exterior fiberglass
- Block foam insulation
- Power patio awning with LED light strip
- Slide-out awnings (N/A LE, TS)
- Fiberglass roof
- One-piece fiberglass front cap
- LED exterior lights
- Stainless steel wheel liners
- Valve stem extensions (N/A LE, TS)
- Roto-cast storage compartments
- Driver side security light (MBS only)
- Aluminum running boards (Std SS; Opt LE; N/A GTS, MBS, TS)
- Fiberglass running boards (N/A SS, LE)
- 110V GFI protected exterior receptacle
- Tinted sliding windows (N/A GTS, MBS, TS)
- Tinted frameless windows (N/A SS, LE)
- Heated, remote exterior mirrors (N/A MBS, LE, TS)
- 7,500 lbs. hitch, 7-pin connector (E450) (N/A MBS, LE, TS)
- 5,000 lbs. hitch, 7-pin connector (Chevy/E350) (N/A MBS, TS)
- 4,200 lbs. hitch, 7-pin connector (MBS only)
- Spare tire (N/A LE)
- Roof ladder (N/A 2400R, 2800QS) (N/A GTS, TS)
- Integrated entry step (N/A MBS)
- Power entry step (MBS only)
- Outside shower (N/A LE)
- Automatic leveling system (4-point) (Opt SS, GTS, LE; N/A MBS, TS)
- Stabilizer jacks (2-point) (MBS only)
- Full body paint (Opt SS, GTS, MBS, TS; N/A on LE)
- 32" Outside 12V TV with speakers (3010DS, 3050DS, 3170DS only) (Opt SS, GTS; N/A MBS, LE, TS)
- Exterior grill with quick connect (Std 2860DS) (Opt SS, GTS, MBS; N/A LE, TS)
- Black tank flush (N/A LE)
- 19" Outside 12V TV with DVD and speakers (Opt MBS only)
Cab Area
- 7" Touch screen radio with USB and Bluetooth (N/A TS)
- Cab area privacy curtain
- Ultra leather driver and passenger seats (N/A LE)
- Power windows and door locks
- Keyless entry (N/A Chevy models)
- Color back-up camera
- Side view cameras (N/A LE)
- Removable cab mat (MBS only)
- Swivel driver seat (N/A Chevy, Power) (Opt SS, GTS; Std MBS; N/A LE, TS)
- Power driver seat (Ford only) (Opt SS, GTS; N/A MBS, LE, TS)
- Swivel passenger seat (N/A Chevy) (Std MBS; Opt SS, GTS; N/A LE, TS)
Kitchen
- Recessed 3-burner range with flush glass cover (N/A TS)
- Range hood with fan and light (N/A TS)
- Oven IPO drawer (Std SS, LE; Opt GTS, MBS; N/A TS)
- Microwave oven (N/A GTS, MBS, TS)
- Convection microwave (Std in 3050S) (Std GTS, MBS, TS; Opt SS; N/A LE)
- 6 cu. ft. double door refrigerator (N/A TS)
- 12 cu. ft. four door refrigerator with ice maker (2860DS, 3010DS, 3050DS) (Opt SS only)
- 5.3 cu. ft. lightweight LP/Electric 110V refrigerator (TS only)
- Raised wood refrigerator panel (N/A 12 cu. ft.) (N/A LE, TS)
- Full extension ball bearing drawer guides
- Flip-up countertop extension (N/A TS)
Bathroom
- Lightweight composite toilet with hand sprayer
- Glass shower door (SS, GTS only)
- Lightweight Arcadia shower door (MBS, LE only)
- Towel bar, tissue, toothbrush and soap holder
- Electric roof fan
- Shower head with flexible extension
- Shower skylight
Bedroom
- Upgraded memory foam mattress
- Bedspread
- Black-out roller shades (N/A TS)
- Bedroom TV with DVD (Opt SS, GTS, MBS, TS; N/A LE)
Living Room
- Dream dinette (N/A with U-shaped dinettes) (N/A LE, TS)
- Visionary pull-out sofa (60" x 74") (3010DS) (SS only)
- 12V LED flat panel adjustable side TV
- Cab over cabinets with 42" TV (IPO side TV) (Opt SS only)
- Child seat tethers in dinette (N/A LE, TS)
- Maxx Air fan in living room
- LED lighting throughout
- Dual recliners IPO sofa (3010DS, 2800QS, 2400R) (Opt SS, GTS only)
- 12V USB charging station (N/A LE)
All standard features and specifications are subject to change.
